Kebab Tower

Light line drawing on cream paper of a lattice of crossing horizontal and vertical members standing on a thin square base plate

A tall lattice frame with five programs hung inside it: an auditorium, a swimming pool, an obstacle course, a trampoline park and gym pods.

Status: Studio
With: Jessica Liu, Kyra Pittie

A lattice tower with five rooms for play and gathering hung inside its frame.

Concept

The concept study draws the tower as a woven frame of crossing members on a single base plate. Everything else is hung inside it.

Light line drawing on cream paper of a lattice of crossing horizontal and vertical members standing on a thin square base plate — Concept study sketch

Site

Aerial view of a dense city with a river, railway lines and several tall towers, with the lattice tower placed among them beside the river, its shadow falling across the street — The tower on its site

Program

The drawing labels five programs: an auditorium at the base, a swimming pool, an obstacle course, a trampoline park, and gym pods fixed to the outside of the frame. The exploded axonometric of the building mass stacks them up the tower, and the program sketch places each one on the plan.

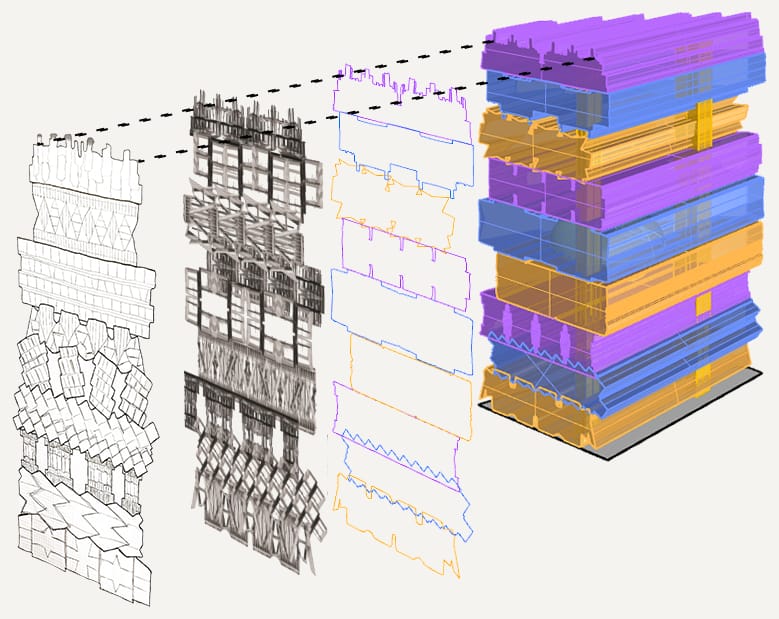

Four views of the tower side by side, from a white outline model to stacked coloured volumes in purple, yellow and blue, joined by dashed lines

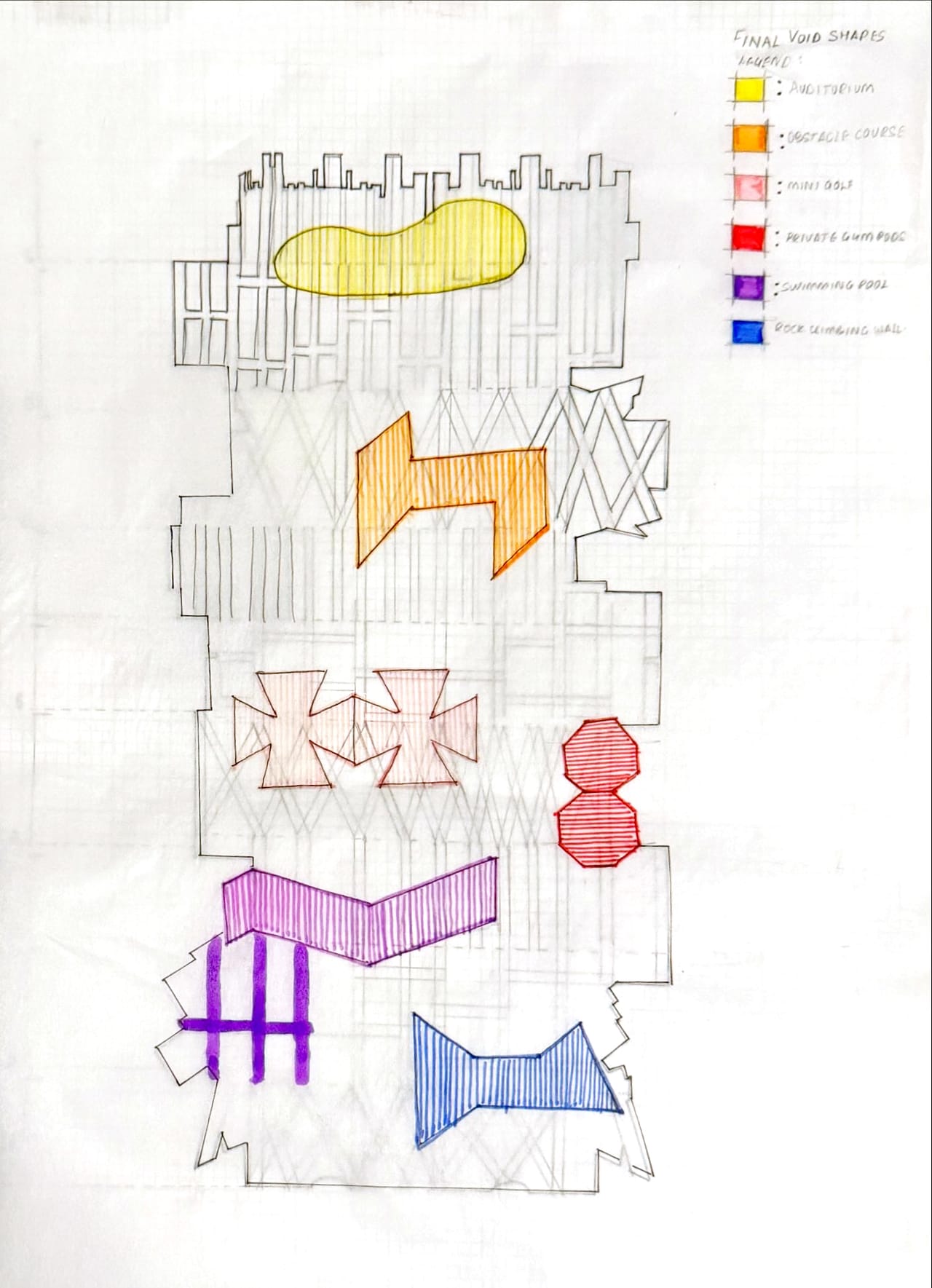

Hand-coloured sketch of the tower plan with coloured shapes for each program and a legend at the top right

The drawing

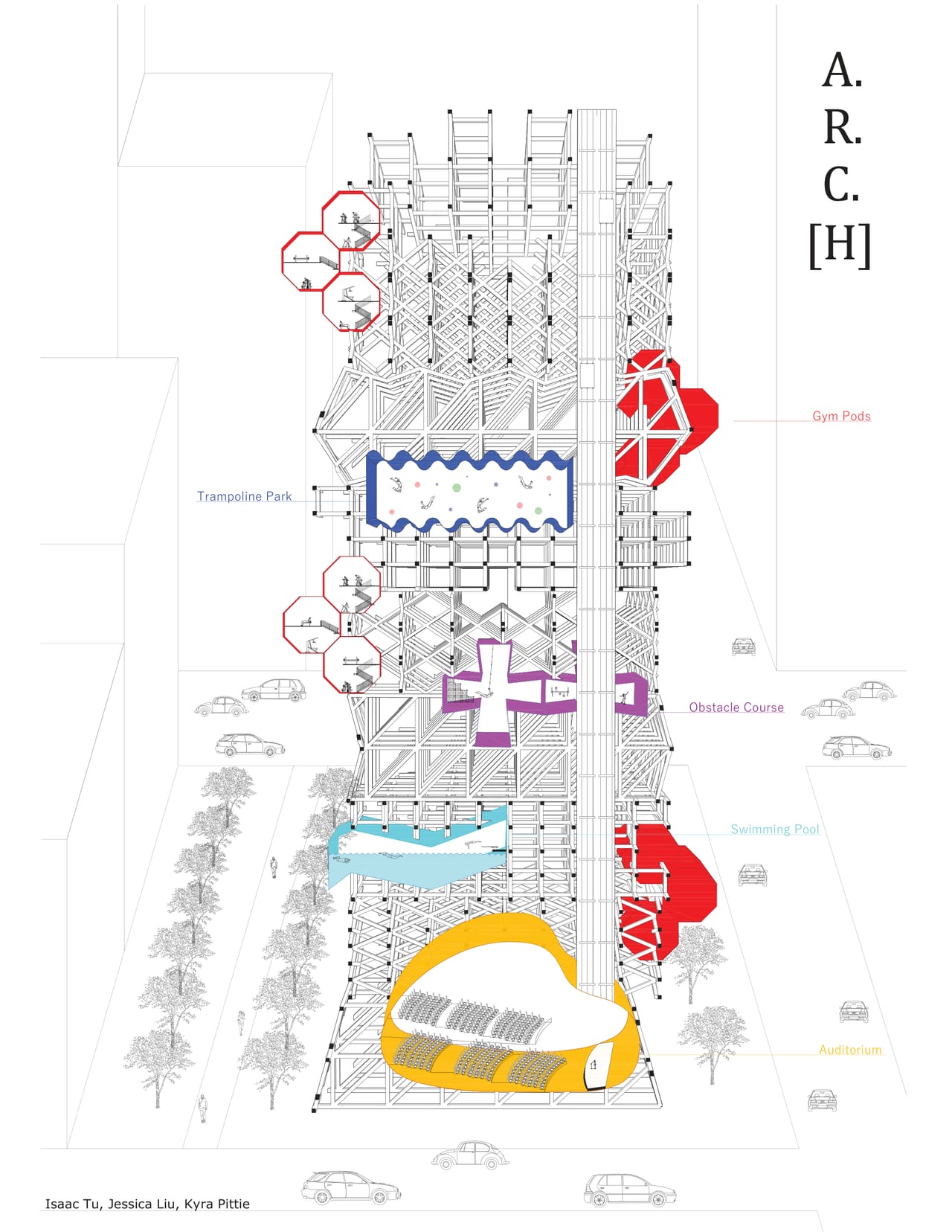

Large axonometric drawing of the lattice tower among its neighbours, with an auditorium in yellow at the base, a light blue swimming pool, a purple obstacle course, a blue wavy-edged trampoline park and red octagonal gym pods, each labelled — A.R.C.[H]: the tower drawing

The render

Render of a tall tower made of a dense lattice of light timber-coloured members, with red volumes hanging off its sides — Render of the lattice tower

The model

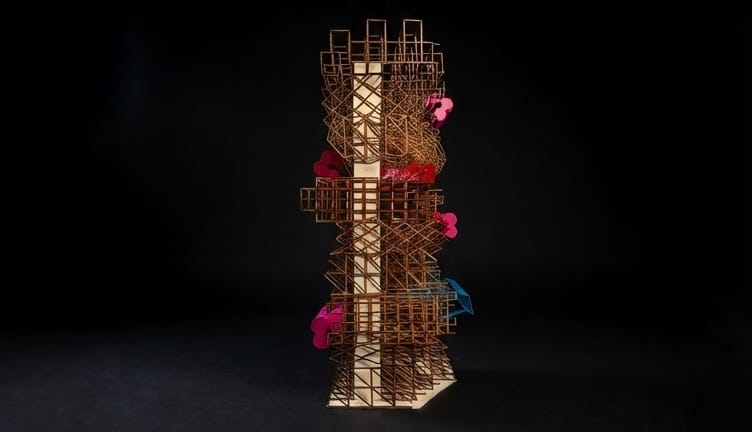

Photograph of a tall model tower made of a dense lattice of thin timber-coloured members on a pale base, with pink, red and blue volumes hanging off its sides, against a black background

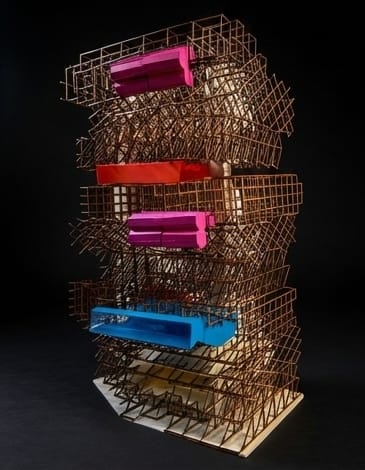

Photograph of the same lattice tower from a closer, slightly turned view, with pink, orange-red and blue volumes set into the frame, against a black background

Placeholder panel for section drawings of the tower, which are still to be added — Placeholder: sections
